A star is born
Discover the innovative and functional SoftFX skin analyzer designed to support skin care businesses and enhance professionalism, for all skin care operators. The Soft FX provides a variety of exclusive features that meet the needs of professionals and skin care companies including the latest rapid analysis solutions, various consultations for different areas of the body, comparison of results and images before and after treatment and delivering results on smartphone, tablet or via email from device. Soft FX is extremely intuitive and very user-friendly to use.

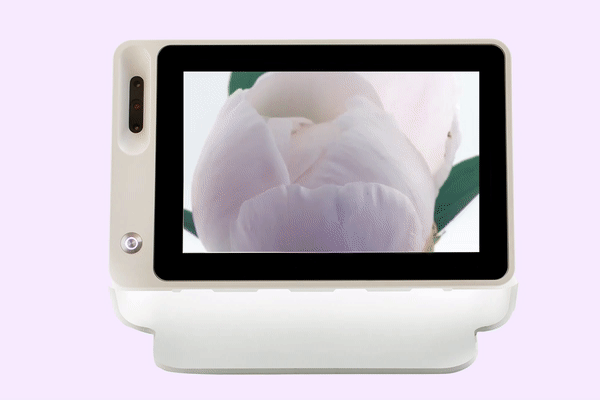

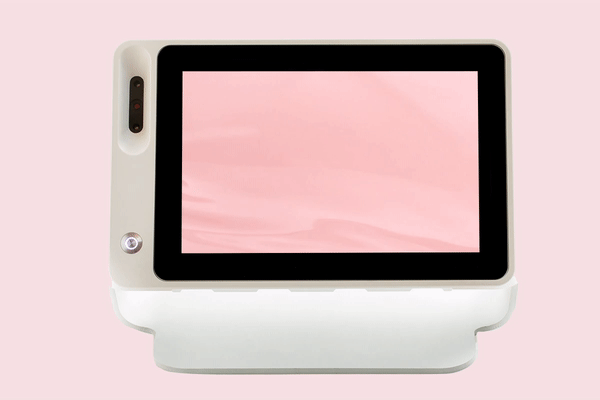

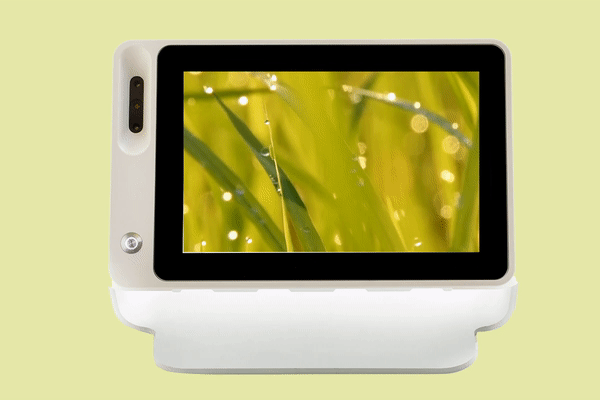

Clever brilliant High Definition 10.1 inch full angle touch screen
Compact,fully stand-alone design
310(w)x170(d)x225(h) mm 3kg
Selfie front-face camera feature
For targeted, personalized skincare

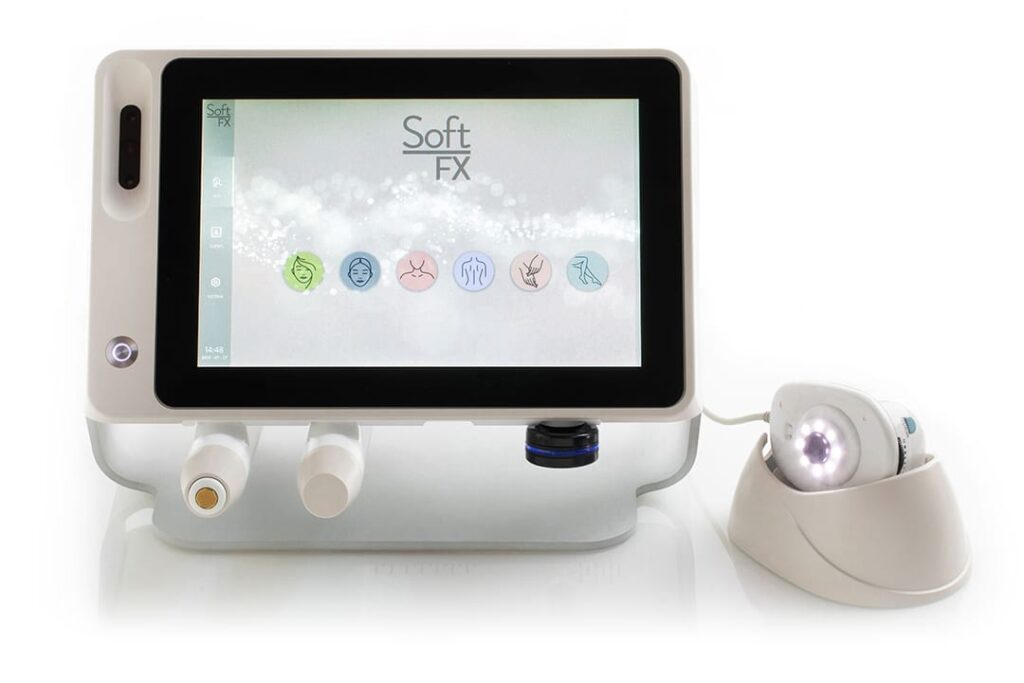

Completely wireless, rapid recharge probes
For real-time measurement of hydration, melanin, elasticity and pH
Digital communication
Skin analysis report delivered to smartphone, tablet (ioS e Android) or via email from device
Camera
For brilliant visual imaging of wrinkles, pigmentation, texture, pores, keratin, redness, hair structure, hair density, hair diameter and dandruff
The most complete body analysis experience ever
The most complete body analysis experience ever
Hair
COMPLEXION

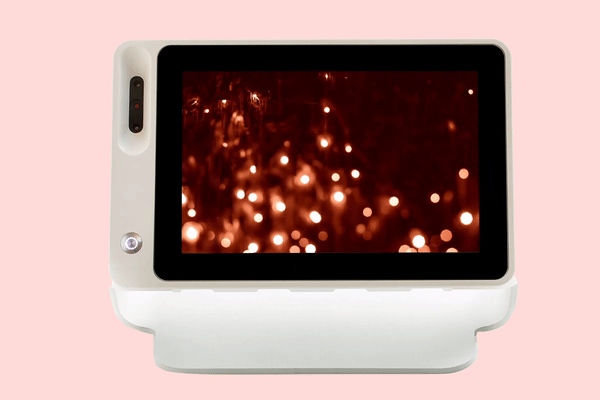

décolleté

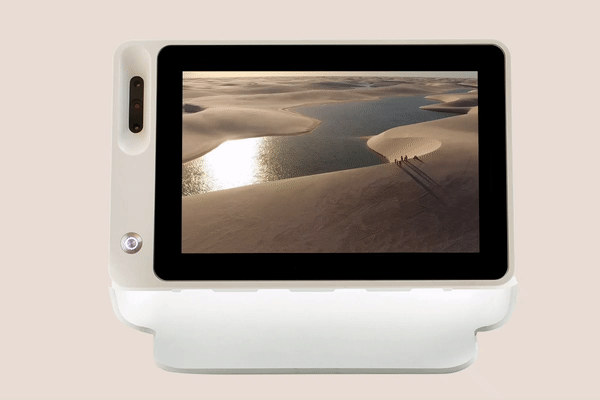

Body
Hands
Legs
The most complete body analysis experience ever
Rapid tests
Hydration– Melanin – pH – Elasticity – Sebum
Rapid tests with camera
Pigmentation – Wrinkles – Pores – Texture –Redness – Keratin – Hair Structure – Hair Density – Hair Diameter – Dandruff
Consultations
Check Up – Check Up Pro – Age Perfect – Age Perfect Pro – Phototype – Sun Protection – Scalp Focus – Décolleté Expert –Hands Beauty
Exclusive “Create your own consultation” feature

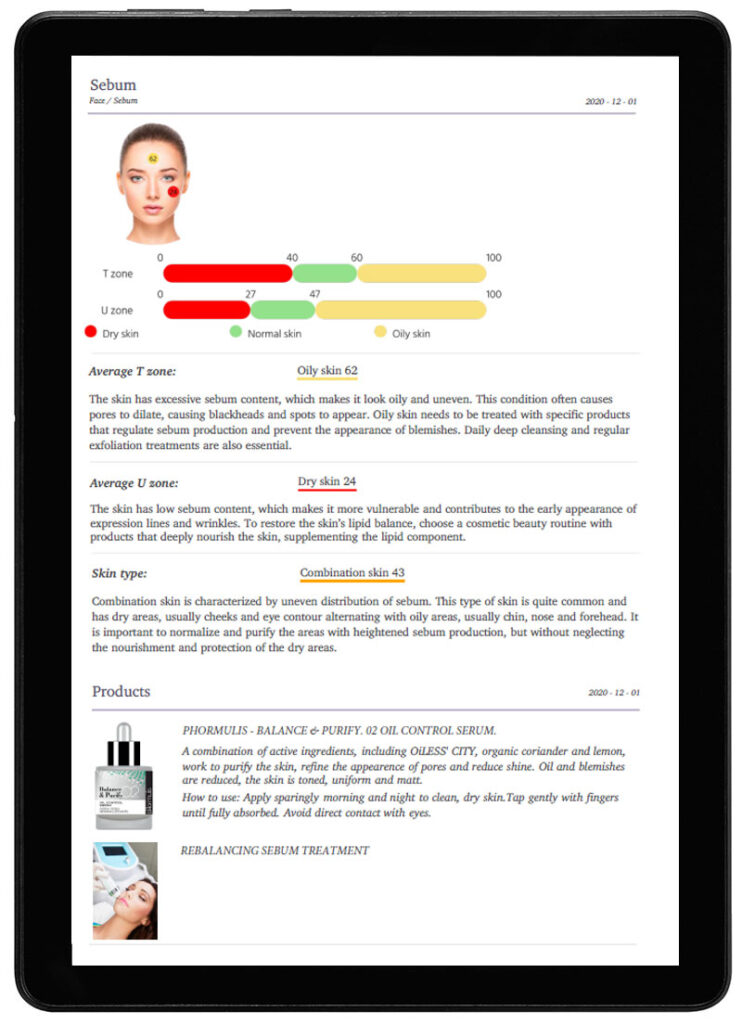

A full report is generated when testing is over
delivered on smartphone, tablet and email
Results
remove subjective interpretation
Comments and advice
support assessment
Product/Treatment recommendation
based on results delivered

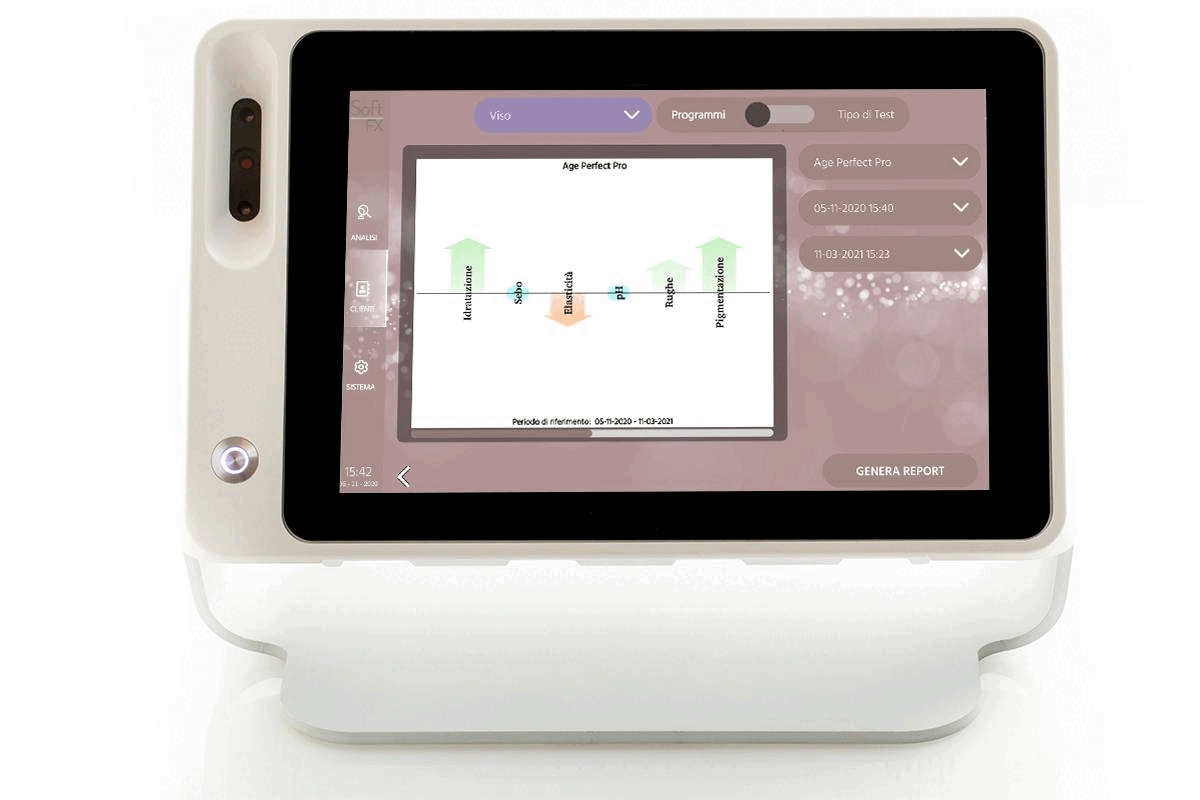

Track trends and monitor progress over time
TECHNICAL SPECIFICATIONS
| Technical Specifications | |
|---|---|
| Display | TFT 10.1’’ with capacitive multi-touch screen |
| Full face camera | 2592x1944 max resolution, auto focus, 60° view angle |
| Connectivity | Ethernet, WiFi, WiFi hotspot Probes connected via Bluetooth Low Energy (BLE), USB microcamera excluded |
| Internal storage | 4GB |
| External storage | 64GB |
| External monitor | HDMI |
| Interface | 2x USB |
| Weight | 3kg |
| Dimensions | 310 (W) x 170 (D) x 225 (H) mm |
| Power supply | 12V DC – 5A |
| Energy absorption | Max. 60 Watt |
| Working conditions | 15 – 30°C (RH 5–85% without condensate) |
| Transport and storage conditions | 0 – 50°C (RH 5–85% without condensate) |
| Compliance | CE mark, UKCA mark |
| Certification | MET mark |
| Measurement Principle | |||
|---|---|---|---|
| Parameter | Technology | Campo | Risoluzione |
| HYDRATION (MEL-HYD FX) |
Capacitive method | 0–100 a.u. | 1 a.u. |
| MELANIN (MEL-HYD FX) |
Double wavelength reflectance photometer (λ1 = 875 nm, λ2 = 660 nm) | 0–100 a.u. | 1 a.u. |
| pH (pH FX) |
pH-sensitive glass electrode | 2–10 | 0.1 |
| SEBUM (TAPE FX) |
Computer vision processing of sebum-sensitive tape | 0–100 a.u. | 1 a.u. |
| ELASTICITY (ELA FX) |
Stress/deformation of skin by suction application | 0–100 a.u. | 1 a.u. |
| Image Sensor | |||
|---|---|---|---|
| Component | Image Sensor | Magnification | Resolution |
| MICROCAMERA (CAM FX) |
¼" color CMOS image sensor | Two lenses available: 100x and 400x |
1.3 MP – 1280×1024 |
